Animaid

A GUI toolkit for animating Python data structures.

Overview

Animaid provides tools to visualize and render Python data structures as styled HTML for educational and presentation purposes. It includes classes that subclass Python’s built-in types:

HTMLString - A str subclass for rendering styled text
HTMLInt - An int subclass for formatted numbers (currency, percentages, ordinals)
HTMLFloat - A float subclass for decimal formatting and units
HTMLList - A list subclass for rendering lists with layout options
HTMLDict - A dict subclass for rendering key-value pairs
HTMLTuple - A tuple subclass with support for named tuples
HTMLSet - A set subclass for rendering unique items as tags or pills
App - A Tkinter-like interactive GUI environment using HTML
Window - Runtime window control for theming, title, and size
WindowConfig - Configuration for window initialization

All classes support a fluent API for chaining style methods and are compatible with Jinja2 templates via the __html__() protocol.

The App class provides a real-time browser-based display where you can add, update, and remove AnimAID objects programmatically with live updates via WebSocket.

Installation

pip install animaid

Or for development:

git clone https://github.com/jdrumgoole/animaid.git
cd animaid
uv pip install -e ".[dev,docs]"

Quick Start

HTMLString

Style text with CSS properties:

from animaid import HTMLString, Color, Size

# Basic styling with strings
s = HTMLString("Hello, World!").bold().color("blue")
print(s.render())
# <span style="font-weight: bold; color: blue">Hello, World!</span>

# Using CSS types for type-safe styling
styled = (
    HTMLString("Important!")
    .bold()
    .italic()
    .color(Color.red)
    .background(Color.hex("#ffff00"))
    .padding(Size.px(10))
)

HTMLList

Render lists with flexible layouts:

from animaid import HTMLList, Size, Color, Border

# Horizontal list with styled items
items = HTMLList(["Apple", "Banana", "Cherry"])
items = items.horizontal().gap(Size.px(10)).item_padding(Size.px(8))
print(items.render())

# Grid layout with CSS types
grid = (
    HTMLList(["A", "B", "C", "D", "E", "F"])
    .grid(3)
    .gap(Size.px(5))
    .item_border(Border().solid().color(Color.gray))
)

HTMLDict

Display key-value pairs in multiple formats:

from animaid import HTMLDict, Color, Size, Border

# Definition list format (default)
d = HTMLDict({"name": "Alice", "role": "Developer"})
d = d.key_bold().key_color(Color.hex("#333")).value_color(Color.hex("#666"))
print(d.render())

# Table format
table = HTMLDict({"x": 1, "y": 2, "z": 3}).as_table()

# Card layout with CSS types
card = (
    HTMLDict({"Name": "Alice", "Email": "alice@example.com"})
    .key_bold()
    .padding(Size.px(12))
    .border(Border().solid().color(Color.hex("#ccc")))
    .border_radius(Size.px(8))
)

HTMLInt

Format integers with various display options:

from animaid import HTMLInt

# Basic integer with styling
n = HTMLInt(42).bold().blue()
print(n.render())
# <span style="font-weight: bold; color: blue">42</span>

# Thousand separators
HTMLInt(1234567).comma().render()
# <span>1,234,567</span>

# Currency formatting
HTMLInt(1999).currency("$").bold().green()
# <span style="font-weight: bold; color: green">$1,999</span>

# Percentage
HTMLInt(85).percent().render()
# <span>85%</span>

# Ordinal numbers
HTMLInt(1).ordinal().render()   # "1st"
HTMLInt(2).ordinal().render()   # "2nd"
HTMLInt(3).ordinal().render()   # "3rd"

# Badge preset (circular number badge)
HTMLInt(42).badge()

HTMLFloat

Format floating-point numbers with precision control:

from animaid import HTMLFloat

# Basic float with styling
f = HTMLFloat(3.14159).bold().render()
# <span style="font-weight: bold">3.14159</span>

# Control decimal places
HTMLFloat(3.14159).decimal(2).render()
# <span>3.14</span>

# Thousand separators
HTMLFloat(1234567.89).comma().render()
# <span>1,234,567.89</span>

# Percentage (multiplies by 100)
HTMLFloat(0.856).percent().render()
# <span>85.60%</span>

# Currency
HTMLFloat(19.99).currency("$").render()
# <span>$19.99</span>

# Scientific notation
HTMLFloat(0.000123).scientific().render()
# <span>1.23e-04</span>

# Add units
HTMLFloat(72.5).unit("kg").render()
# <span>72.5 kg</span>

HTMLTuple

Render tuples with flexible layouts and named tuple support:

from animaid import HTMLTuple
from collections import namedtuple

# Basic tuple
t = HTMLTuple((1, 2, 3))
t.render()
# <div>(1, 2, 3)</div>

# Horizontal layout with pills
HTMLTuple(("Red", "Green", "Blue")).horizontal().pills()

# Vertical layout
HTMLTuple(("First", "Second", "Third")).vertical().gap("8px")

# Named tuple support with labels
Point = namedtuple('Point', ['x', 'y'])
HTMLTuple(Point(10, 20)).labeled()
# Renders as: x: 10, y: 20

# Custom separator
HTMLTuple((1, 2, 3)).separator(" | ")
# <div>1 | 2 | 3</div>

# Without parentheses
HTMLTuple((1, 2, 3)).plain()
# <div>1, 2, 3</div>

HTMLSet

Render unique items as tags or pills:

from animaid import HTMLSet

# Basic set (duplicates automatically removed)
tags = HTMLSet(["Python", "Web", "Python", "HTML"])
# Only contains: Python, Web, HTML

# Pills preset (rounded pill-style items)
HTMLSet({"python", "javascript", "rust"}).pills()

# Tags preset
HTMLSet({"urgent", "bug", "help-wanted"}).tags()

# Horizontal layout with gap
HTMLSet({"A", "B", "C"}).horizontal().gap("10px")

# Custom item styling
HTMLSet({"one", "two", "three"}).item_background("#e3f2fd").item_padding("8px 12px")

HTMLSet is reactive - when used with App, adding or removing items automatically updates the browser:

from animaid import App, HTMLSet

with App() as app:
    tags = HTMLSet({"python"}).pills()
    app.add(tags)

    tags.add("javascript")  # Browser updates automatically
    tags.add("rust")        # Browser updates automatically
    tags.discard("python")  # Browser updates automatically

Nested Structures

Combine types for complex visualizations:

from animaid import HTMLDict, HTMLList, Size, Border, Color

# Dict of Lists
categories = HTMLDict({
    "Fruits": HTMLList(["Apple", "Banana"]).horizontal().gap(Size.px(8)),
    "Vegetables": HTMLList(["Carrot", "Broccoli"]).horizontal().gap(Size.px(8)),
}).key_bold()

# List of Dicts (cards)
card_border = Border().solid().color(Color.hex("#ddd"))
cards = HTMLList([
    HTMLDict({"Name": "Alice", "Role": "Dev"}).key_bold().padding(Size.px(10)).border(card_border),
    HTMLDict({"Name": "Bob", "Role": "Design"}).key_bold().padding(Size.px(10)).border(card_border),
]).horizontal().gap(Size.px(16))

CSS Types

Animaid provides type-safe CSS value classes that can be used instead of raw strings. These provide better IDE autocomplete, validation, and documentation.

Size

Create CSS size values with explicit units:

from animaid import Size

Size.px(16)       # "16px"
Size.em(1.5)      # "1.5em"
Size.rem(2)       # "2rem"
Size.percent(50)  # "50%"
Size.vh(100)      # "100vh"
Size.vw(80)       # "80vw"
Size.auto()       # "auto"

Color

Create CSS color values with validation:

from animaid import Color

# Named colors
Color.red         # "red"
Color.blue        # "blue"

# Hex colors
Color.hex("#ff0000")   # "#ff0000"
Color.hex("00f")       # "#00f" (auto-adds #)

# RGB/RGBA
Color.rgb(255, 0, 0)        # "rgb(255, 0, 0)"
Color.rgba(255, 0, 0, 0.5)  # "rgba(255, 0, 0, 0.5)"

# HSL/HSLA
Color.hsl(120, 100, 50)       # "hsl(120, 100%, 50%)"
Color.hsla(120, 100, 50, 0.5) # "hsla(120, 100%, 50%, 0.5)"

Border

Create CSS border values with a fluent API:

from animaid import Border, BorderStyle, Color, Size

# Using constructor
Border(Size.px(1), BorderStyle.SOLID, Color.black)  # "1px solid black"

# Using fluent API
Border().width(2).solid().color("red")    # "2px solid red"
Border().dashed().color(Color.blue)       # "1px dashed blue"

# Factory methods
Border.solid(2, "black")   # "2px solid black"
Border.dashed(1, "gray")   # "1px dashed gray"

Spacing

Create CSS spacing values (padding, margin) for 1-4 edges:

from animaid import Spacing, Size

# Single value (all edges)
Spacing.all(10)              # "10px"

# Two values (vertical, horizontal)
Spacing.symmetric(10, 20)    # "10px 20px"

# Four values (top, right, bottom, left)
Spacing.edges(10, 20, 10, 20)  # "10px 20px 10px 20px"

# Using Size values
Spacing.symmetric(Size.rem(1), Size.rem(2))  # "1rem 2rem"

Enums

CSS enum values for constrained properties:

from animaid import (
    Display, FlexDirection, AlignItems, JustifyContent,
    FontWeight, FontStyle, TextAlign, TextDecoration
)

# Display
Display.FLEX, Display.GRID, Display.BLOCK, Display.INLINE

# Flexbox
FlexDirection.ROW, FlexDirection.COLUMN
AlignItems.CENTER, AlignItems.STRETCH
JustifyContent.SPACE_BETWEEN, JustifyContent.CENTER

# Typography
FontWeight.BOLD, FontWeight.NORMAL
FontStyle.ITALIC, FontStyle.NORMAL
TextAlign.CENTER, TextAlign.LEFT
TextDecoration.UNDERLINE, TextDecoration.LINE_THROUGH

Backward Compatibility

All methods accept both CSS types and raw strings:

from animaid import HTMLString, Color, Size

# Both work identically:
HTMLString("Hello").color("red")        # Using string
HTMLString("Hello").color(Color.red)    # Using CSS type

HTMLString("Hello").font_size("16px")   # Using string
HTMLString("Hello").font_size(Size.px(16))  # Using CSS type

App - Interactive Display

The App class provides a Tkinter-like interactive GUI environment using HTML. The browser becomes the display surface, and AnimAID objects become widgets that can be added, updated, and removed programmatically with real-time visual feedback.

Basic Usage

from animaid import App, HTMLString, HTMLList

# Create and start the server (opens browser automatically)
app = App()
app.run()

# Add items - browser updates in real-time
app.add(HTMLString("Hello World!").bold().xl())
app.add(HTMLString("This updates live").italic().blue())
app.add(HTMLList(["Apple", "Banana", "Cherry"]).pills())

# Update an existing item
item_id = app.add(HTMLString("Loading...").muted())
app.update(item_id, HTMLString("Done!").success())

# Remove items - by ID or by object
app.remove(item_id)  # By ID
app.remove(my_item)  # By object reference
app.clear(my_item)   # Alias for remove
app.clear_all()      # Clear all items

# Stop the server when done
app.stop()

Context Manager

Use the context manager for automatic cleanup:

from animaid import App, HTMLString

with App() as app:
    app.add(HTMLString("Temporary display").bold())
    app.add(HTMLString("Server stops when context exits").muted())
    input("Press Enter to exit...")
# Server stops automatically when context exits

Configuration Options

# Custom port and title
app = App(port=8300, title="My App")

# With theme
app = App(theme="dark")

# With window size
app = App(width=1280, height=720)

# Using WindowConfig for presets
from animaid import WindowConfig
app = App(window=WindowConfig.compact(title="Tool"))

# Disable auto-opening browser
app = App(auto_open=False)
app.run()
print(f"Open browser at: {app.url}")

Window Controls

Access the window property to control the browser window at runtime:

from animaid import App, HTMLString

with App() as app:
    # Switch to dark theme
    app.window.dark()

    # Update the title dynamically
    for i in range(100):
        app.window.set_title(f"Processing... {i}%")
    app.window.set_title("Complete!")

    # Resize the window
    app.window.resize(1280, 720)

    # Switch themes
    app.window.set_theme("light")  # or "dark" or "auto"

    # Set background color
    app.window.set_background("#1a1a2e")

    # Request fullscreen (browser may require user interaction)
    app.window.fullscreen()

Window Methods

Method	Description
`set_title(title)`	Update the browser tab title
`set_theme(theme)`	Set theme (‘light’, ‘dark’, ‘auto’)
`dark()`	Switch to dark theme
`light()`	Switch to light theme
`resize(width, height)`	Resize the window
`set_background(color)`	Set the page background color
`set_favicon(url)`	Set the page favicon
`fullscreen()`	Request fullscreen mode
`on_resize(callback)`	Register resize callback
`on_close(callback)`	Register close callback

WindowConfig Presets

from animaid import WindowConfig

# Factory presets
config = WindowConfig.compact(title="Tool")    # 600x400
config = WindowConfig.standard(title="App")    # 1024x768
config = WindowConfig.wide(title="Dashboard")  # 1280x720
config = WindowConfig.dark(title="Dark Mode")  # Dark theme

Theme Toggle Example

from animaid import App, HTMLButton

with App() as app:
    toggle = HTMLButton("Toggle Theme", variant="primary")
    app.add(toggle)
    dark = False

    while True:
        event = app.wait_for_event(timeout=0.5)
        if event and event.event_type == "click":
            dark = not dark
            if dark:
                app.window.dark()
            else:
                app.window.light()

API Methods

Method	Description
`run()`	Start server and open browser
`stop()`	Stop the server
`add(item, id=None)`	Add item, returns ID
`update(id, item)`	Update item by ID
`remove(item_or_id)`	Remove item by ID or object
`clear(item_or_id)`	Remove item by ID or object (alias for remove)
`clear_all()`	Remove all items
`get(id)`	Get item by ID
`items()`	Get all (id, item) pairs
`refresh(id)`	Re-render and broadcast a single item
`refresh_all()`	Re-render and broadcast all items

Properties

Property	Description
`url`	Server URL (e.g., `http://127.0.0.1:8200`)
`is_running`	Whether server is running
`title`	Display title
`port`	Server port

Installation

The App class requires the tutorial dependencies:

pip install animaid[tutorial]
# or with uv
uv pip install animaid[tutorial]

Reactive Updates

Mutable HTML objects (HTMLList, HTMLDict, HTMLSet) automatically notify the App display when their contents change. This means you can mutate these objects directly and the browser will update in real-time without calling update().

from animaid import App, HTMLList, HTMLDict, HTMLSet

app = App()
app.run()

# Add a mutable list
scores = HTMLList([10, 20, 30]).pills()
app.add(scores)

# Mutate the list - browser updates automatically!
scores.append(40)      # Browser shows [10, 20, 30, 40]
scores[0] = 100        # Browser shows [100, 20, 30, 40]
scores.pop()           # Browser shows [100, 20, 30]

# Same for dicts
data = HTMLDict({"score": 0, "level": 1}).card()
app.add(data)
data["score"] = 500    # Browser updates automatically

# And sets
tags = HTMLSet({"python", "html"}).pills()
app.add(tags)
tags.add("css")        # Browser updates automatically

Styling updates work on all types: All HTML types (HTMLString, HTMLInt, HTMLFloat, HTMLTuple, HTMLList, HTMLDict, HTMLSet) automatically notify App when their styles change:

from animaid import App, HTMLString, HTMLInt

app = App()
app.run()

# Style changes trigger automatic updates
message = HTMLString("Hello")
app.add(message)
message.bold()        # Browser updates automatically
message.red()         # Browser updates automatically

number = HTMLInt(42)
app.add(number)
number.badge()        # Browser updates automatically

Immutable types need update() for data changes: Since HTMLString, HTMLInt, HTMLFloat, and HTMLTuple inherit from Python’s immutable types, you cannot change their underlying data. To display different content, use the update() method:

from animaid import App, HTMLString

app = App()
app.run()

message = HTMLString("Loading...").muted()
item_id = app.add(message)

# Must use update() to change the content (not just style)
app.update(item_id, HTMLString("Complete!").success())

Manual refresh: If you modify an object through a method that bypasses the notification system, use refresh() or refresh_all():

# Force re-render of a specific item
app.refresh(item_id)

# Force re-render of all items
app.refresh_all()

Demo Programs

AnimAID includes several demo programs that showcase its interactive capabilities. Run them to see real-time updates in action!

Running Demos

List all available demos:

animaid-demo --list

Run a specific demo:

animaid-demo countdown_timer

Or run directly with Python:

python demos/countdown_timer.py

Available Demos

Demo	Description	Source
`countdown_timer`	Real-time countdown with color transitions (green → yellow → red)	View Code
`live_list`	Reactive shopping cart showing `.append()` and `.pop()`	View Code
`score_tracker`	Game score tracking with automatic dict updates	View Code
`sorting_visualizer`	Bubble sort algorithm with step-by-step visualization	View Code
`dashboard`	Multi-type dashboard with HTMLString, HTMLDict, HTMLList, HTMLSet	View Code
`typewriter`	Typewriter effect with progressive styling	View Code
`todo_app`	Interactive todo list with CRUD operations	View Code
`data_pipeline`	ETL pipeline progress tracking	View Code

Input Widget Demos

Demo	Description	Source

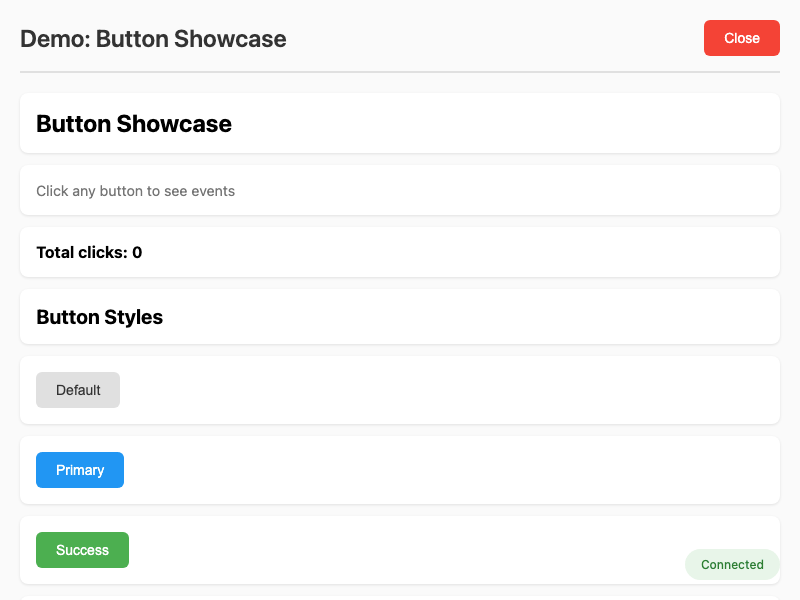

`input_button`	Button styles, sizes, and click event handling	View Code

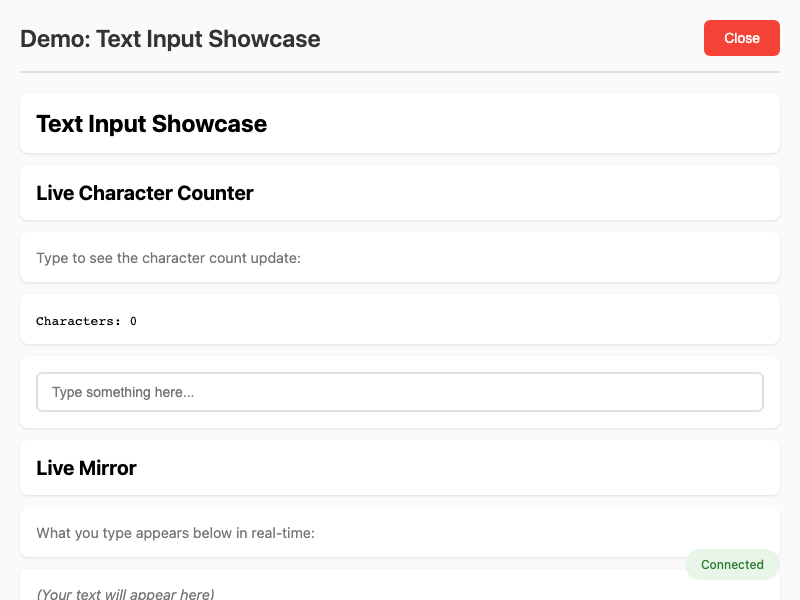

`input_text`	Text input with live typing feedback and validation	View Code

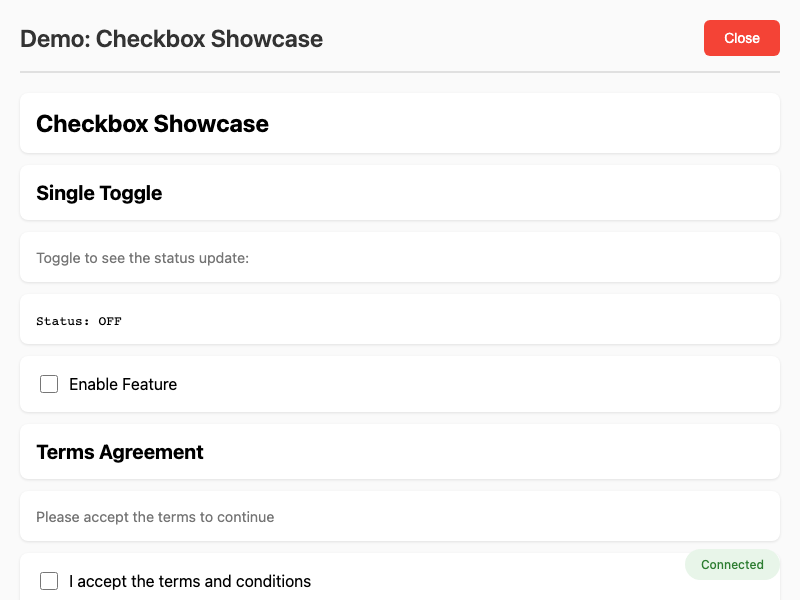

`input_checkbox`	Checkbox toggles and multi-checkbox patterns	View Code

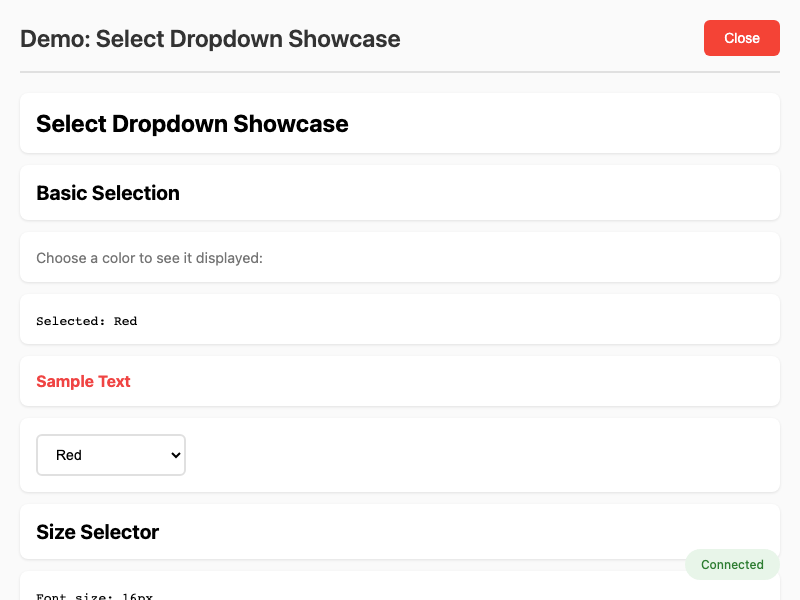

`input_select`	Select dropdowns with dynamic updates	View Code

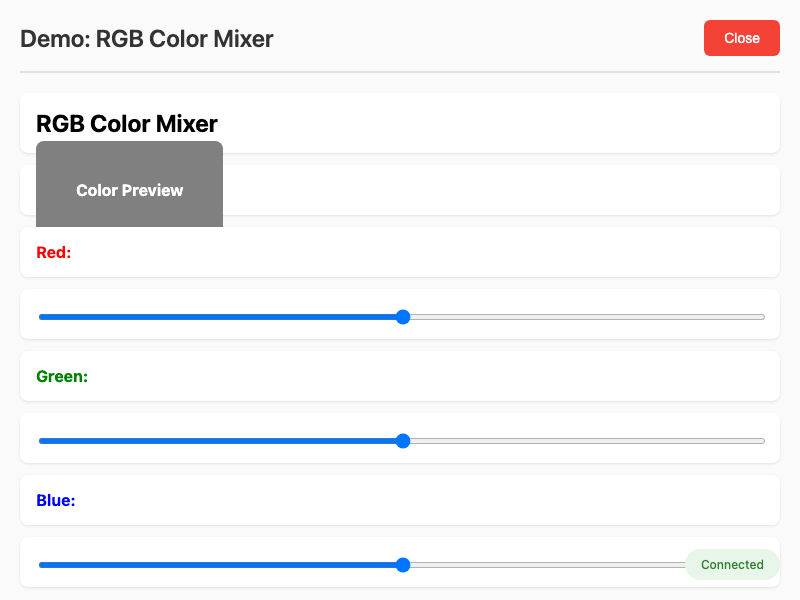

`input_slider`	RGB color mixer with sliders	View Code
`input_greeter`	Interactive greeter with text input and button	View Code

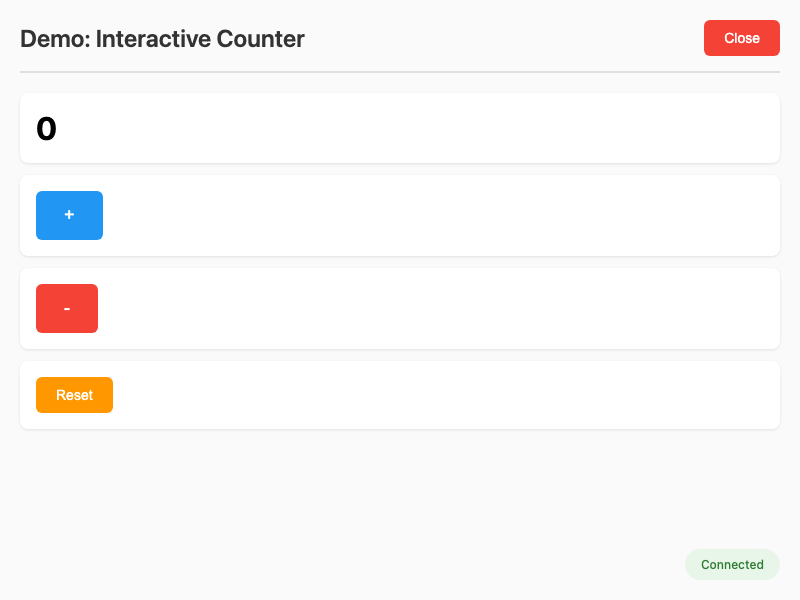

`input_counter`	Counter with increment/decrement buttons	View Code
`input_form`	Registration form with multiple input types	View Code

Container Demos

Demo	Description	Source
`container_layout`	HTMLRow and HTMLColumn container layouts	View Code
`container_card`	HTMLCard with shadows, borders, and presets	View Code
`container_divider`	HTMLDivider for visual content separation	View Code
`container_spacer`	HTMLSpacer for fixed and flexible spacing	View Code
`container_row_column`	Flexbox layouts with alignment options	View Code

Each demo opens a browser window and shows real-time updates as Python code executes.

Demo Gallery

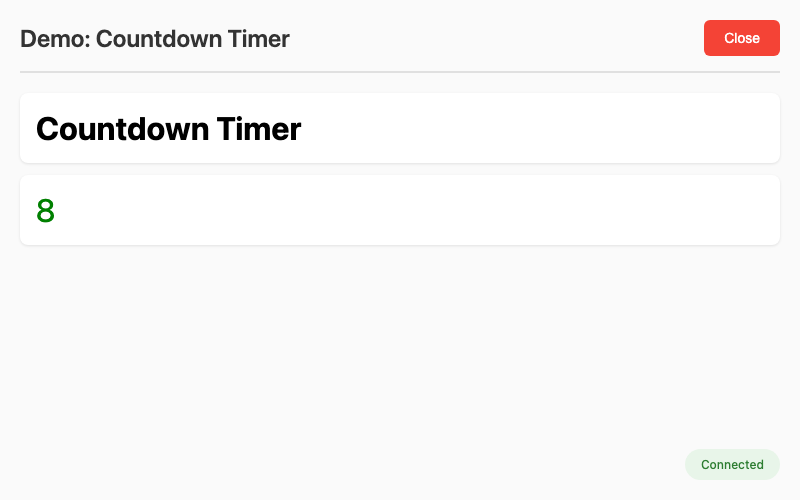

Countdown Timer - Color transitions from green to yellow to red (source)

Countdown Timer Demo

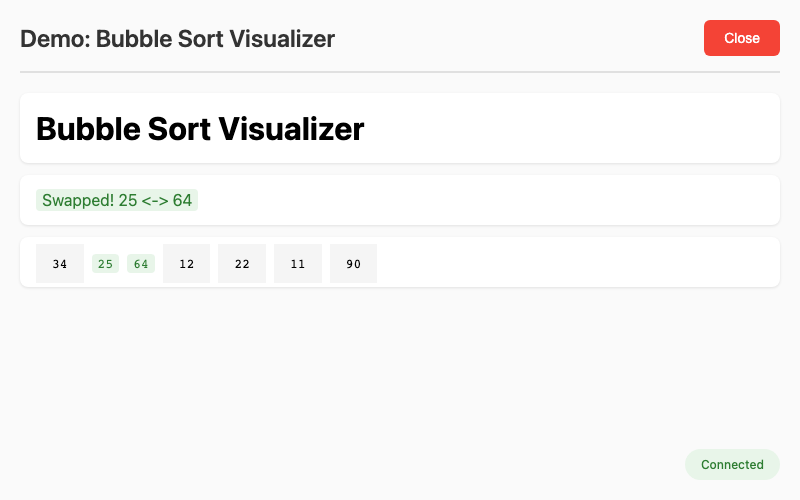

Sorting Visualizer - Bubble sort with step-by-step animation (source)

Sorting Visualizer Demo

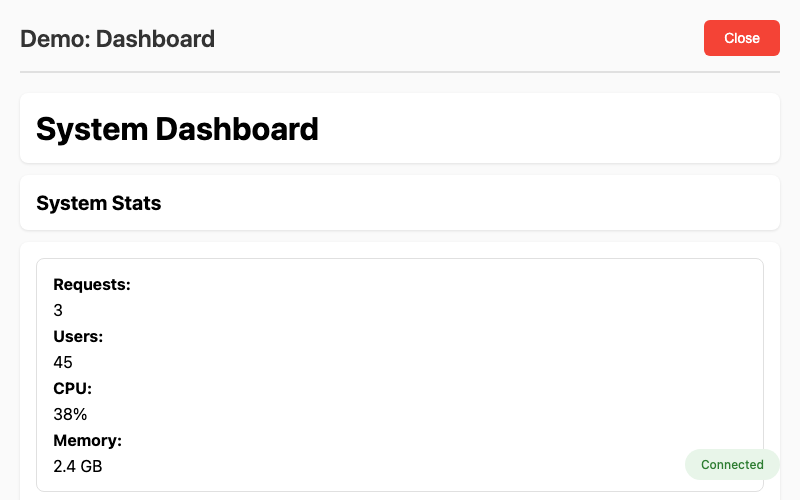

Dashboard - Multiple HTML types updating together (source)

Dashboard Demo

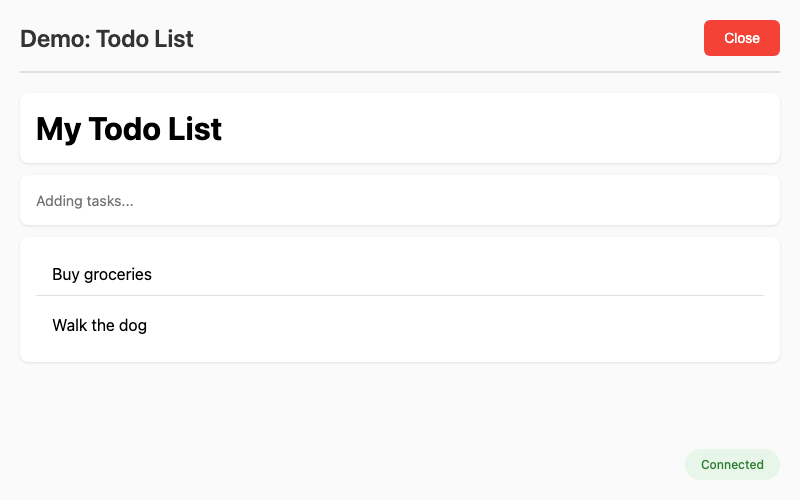

Todo App - Interactive task management (source)

Todo App Demo

Interactive Tutorial

AnimAID includes a comprehensive web-based tutorial that lets you explore all features interactively.

Starting the Tutorial

# Install with tutorial dependencies
pip install animaid[tutorial]

# Start the tutorial (opens browser automatically)
animaid-tutorial

# Or specify a custom port
animaid-tutorial --port 8300

Tutorial Features

The tutorial provides five main sections:

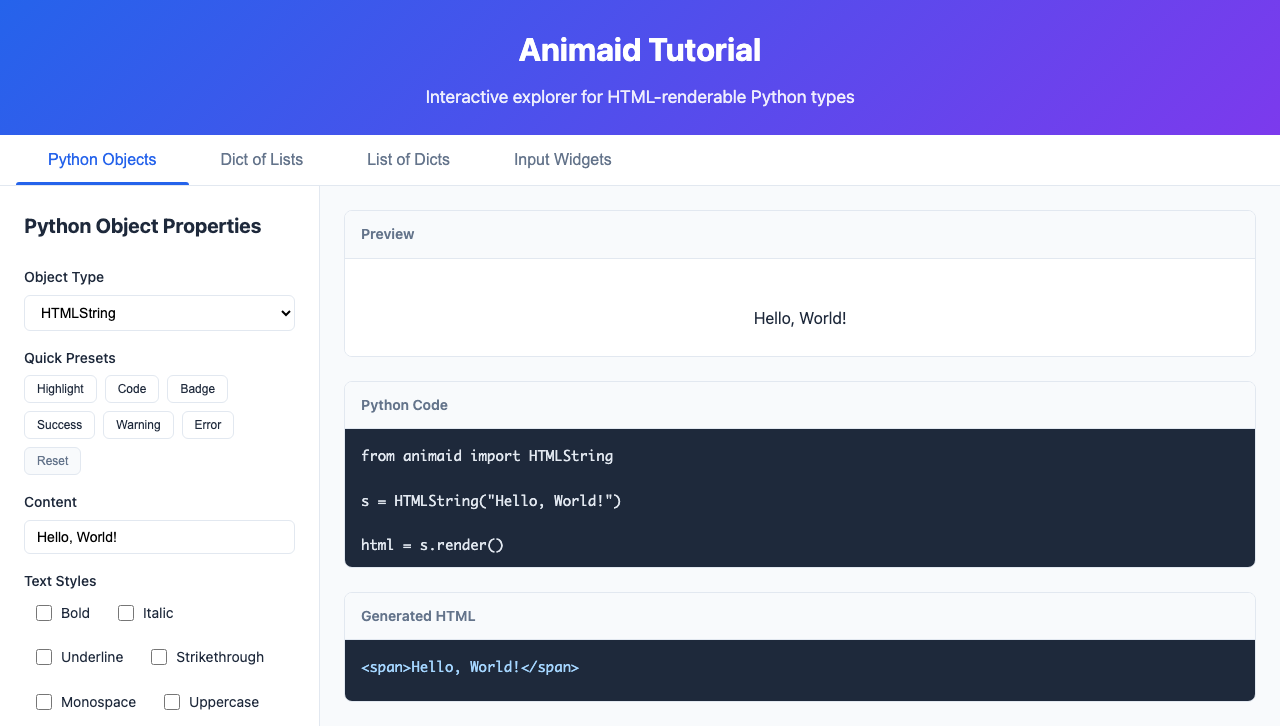

Python Objects Tab

Unified interface for all HTML types (HTMLString, HTMLList, HTMLDict, HTMLInt, HTMLFloat, HTMLTuple, HTMLSet)
Dropdown selector to switch between object types
Type-specific controls and presets
Live preview, Python code, and HTML output

Python Objects Tab

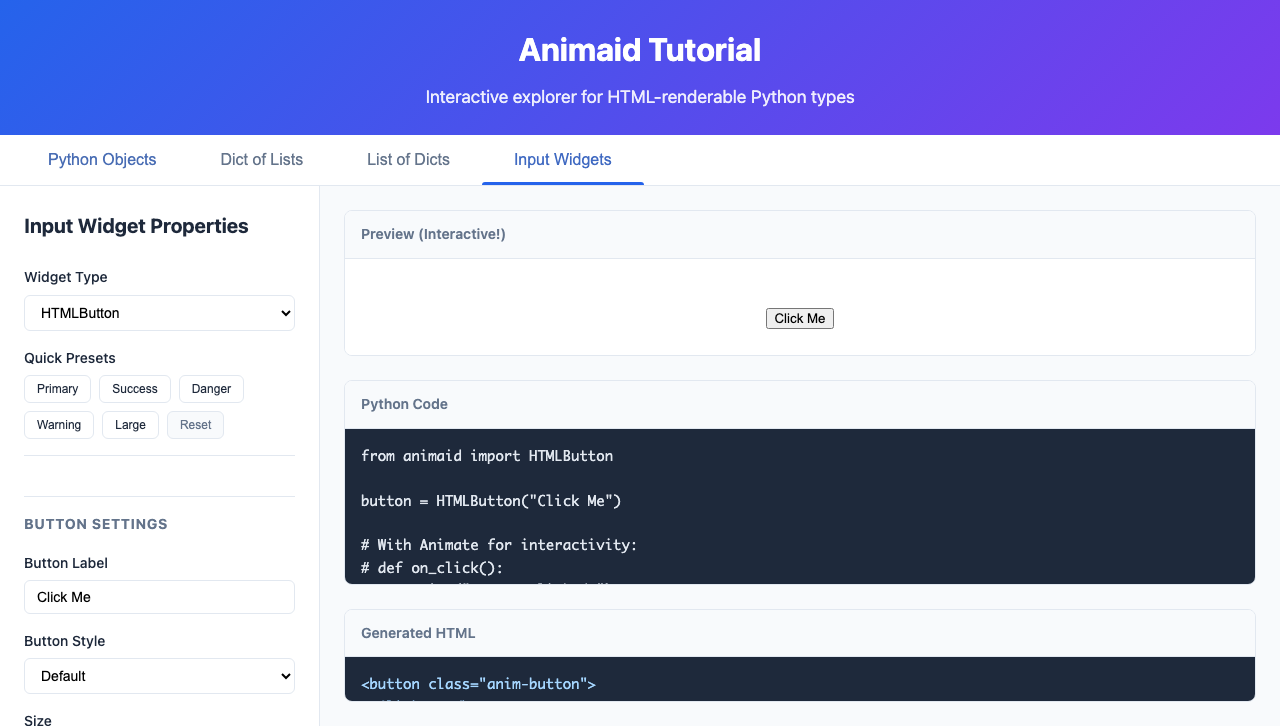

Input Widgets Tab

Interactive input widgets: Button, TextInput, Checkbox, Slider, Select
Widget-specific controls and presets
Live demonstration of event handling
Generated Python code for each widget

Input Widgets Tab

Containers Tab

Layout containers: HTMLRow, HTMLColumn, HTMLCard, HTMLDivider, HTMLSpacer
Container-specific controls and presets
Live preview of flexbox layouts
Generated Python code for each container

Containers Tab

Dict of Lists Tab

Visualize nested dictionaries containing lists
Configure list styling (horizontal, vertical, pills, cards)
See how nested structures render

List of Dicts Tab

Visualize lists of dictionaries as cards
Configure card styling and layout
Perfect for displaying collections of records

What You Can Do

Experiment: Adjust any property and see instant results
Copy Code: Generated Python code is ready to use in your projects
Learn: See how each style method affects the HTML output
Explore Presets: Quick buttons for common styling patterns

Animaid

Overview

Installation

Quick Start

HTMLString

HTMLList

HTMLDict

HTMLInt

HTMLFloat

HTMLTuple

HTMLSet

Nested Structures

CSS Types

Size

Color

Border

Spacing

Enums

Backward Compatibility

App - Interactive Display

Basic Usage

Context Manager

Configuration Options

Window Controls

Window Methods

WindowConfig Presets

Theme Toggle Example

API Methods

Properties

Installation

Reactive Updates

Demo Programs

Running Demos

Available Demos

Input Widget Demos

Container Demos

Demo Gallery

Input Widget Gallery

Interactive Tutorial

Starting the Tutorial

Tutorial Features

What You Can Do

Contents

Indices and tables
